Q-BOX-M(TOP80C 2*LAN）

Model :

Description :
◆ Integrated Intel 4th Mobile Haswell-U single chipset CPU；
◆ Onboard 2GB/4GB DDR3L Memory；
◆ Provide 1*VGA,1*HDMI 1.4（Support 4K display output）；
◆ 4*RS-232, 2*RS422/485（optional 6*RS232）；
◆ Support power-on automatic startup function, jumper selection；
◆ Single input DC power supply DC12V ( wide voltage power supply support 9-36V input Optional)；
◆ Size:235*200*56.5mm；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Integrated Intel 4^th Mobile Haswell-U single chipset CPU；

◆ Onboard 2GB/4GB DDR3L Memory；

◆ Provide 1*VGA,1*HDMI 1.4（Support 4K display output）

◆ 4*RS-232, 2*RS422/485（optional 6*RS232）；

◆ Support power-on automatic startup function, jumper selection；

◆ Single input DC power supply DC12V ( wide voltage power supply support 9-36V input Optional)

◆ Size:235*200*56.5mm；

SPECIFICATION

Model No.	Q-BOX-M
Measure	23520056.5mm
Processor	Integrated Intel Intel 4^th?Mobile Haswell-U single chipset ?CPU；
Chip	Haswell-Usingle chipset ?CPU
RAM	Onboard 2GB/4GB DDR3L?RAM,?Max. Expanded 12Gb
Expansion slot	1 DDR3 SODIMM 204 Socket
Network	Onboard 2*Gigabit Ethernet
Audio	Onboard ?HDA ALC662
Storage	1MINISATA Support SSD; 2SATA?1*SATA_HDD
Chassis Color	Black

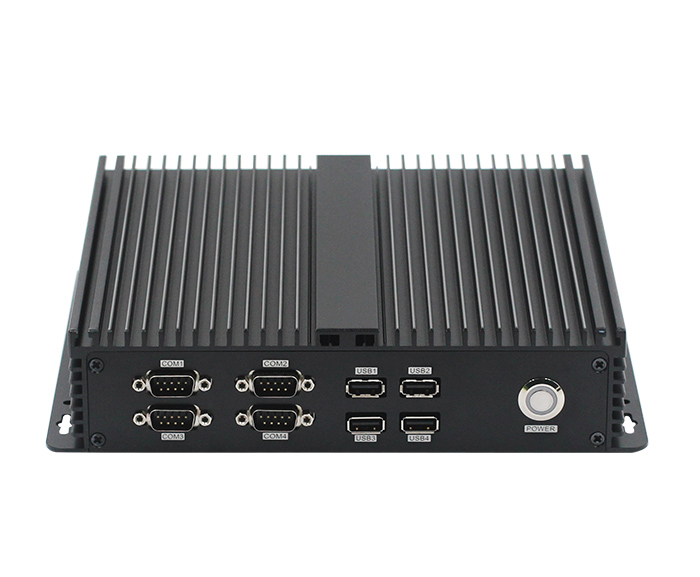

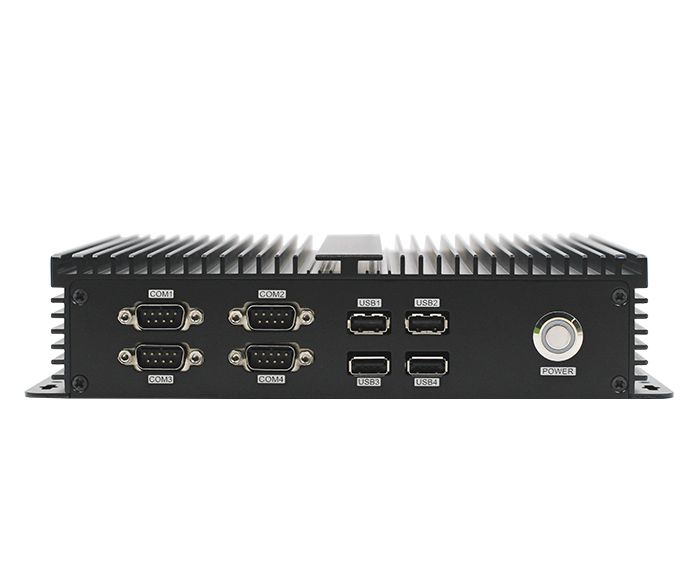

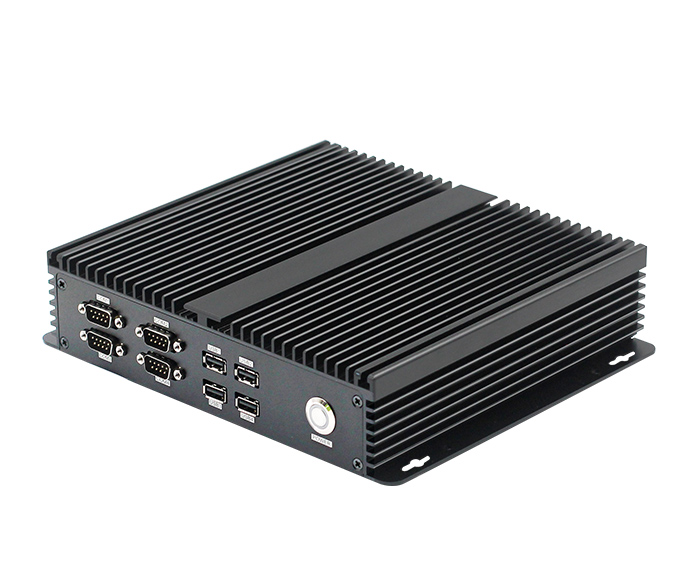

Front panel I/O	4COM（COM1and COM2 RS422/RS485 or RS232 Optional）4USB 1*POW-ON/OFF（switch）indicator?light

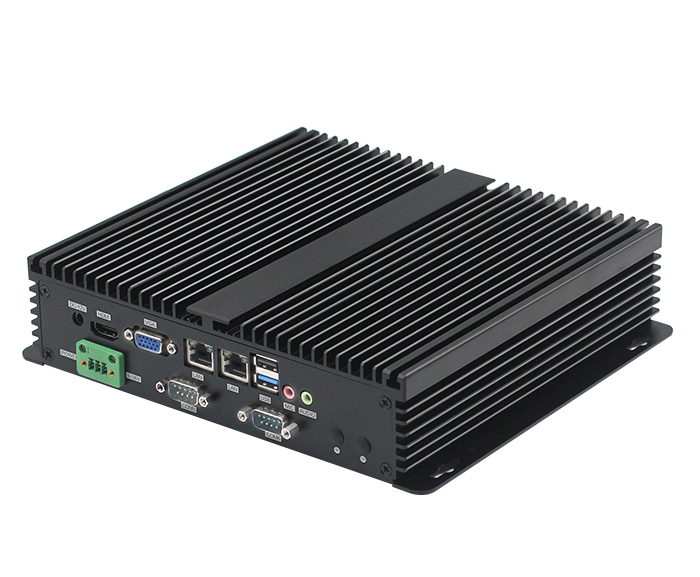

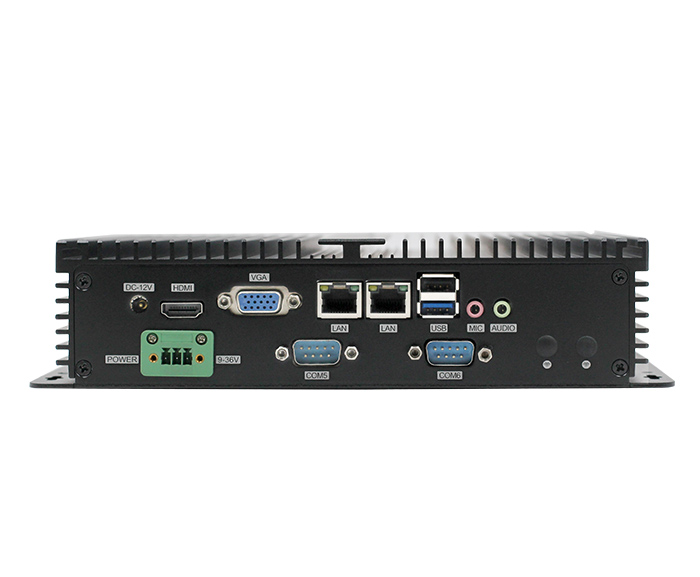

Back panel I/O	1VGA 1HDMI 2USB3.0 ?2LAN 1line out 1mic in 2COM(RS232) 1DC 11Phoenix Terminals 3PIN power interface
Standard Accessories	112V 5Apower adapter?1WIFI?antenna?（optional））
Package

Size?

Order Information

Model No

SPECIFICATION

Processor

?

TOP80C-I3

Integrated Intel 4^th?Mobile Haswell-U

Onboard 2GB/4GB DDR3L?Memory；2G/4GDDR3Lcan be expansion 12G

?

I3-4010U Duo-core 1.7GHZ ?15W

I3-4120U Duo-core 2.0GHZ ?15W

?

?

TOP80C-I5

Integrated Intel 4^th?Mobile Haswell-U

Onboard 2GB/4GB DDR3L?Memory；2G/4GDDR3Lcan be expansion 12G

?

?

I5-4200U?Duo-core 1.6GHZ-2.6GHZ ?15W

I5-4278U?Duo-core2.6GHZ-3.1GHZ ?28W

?

?

TOP80C-I7

Integrated Intel 4^th?Mobile Haswell-U

Onboard 2GB/4GB DDR3L?Memory；2G/4GDDR3Lcan be expansion 12G

?

I7-4500U Duo-core1.8GHZ-3.0GHZ ?15W

I7-4558U Duo-core2.8GHZ-3.3GHZ ?28W
