Description :
◆ Integrated Intel Gemini Lake single CPU；
◆ Support TPM2.0(optional)
◆Provide 1*VGA,1*HDMI 1.4（Support 4K display output）；
◆COM1,2 can be selected as RS232 or RS485 by jumper and BIOS settings, COM3, COM4, COM5, COM6 are RS232
◆ onboard 32/64/128G EMMC storge chipset（optional）;
◆ Support power-on automatic boot function, jump selection；
◆ Wide viltage 12-19V power supply；
◆ Size 134*126*46.8 mm
|
Processor system |
CPU |
Integrated Intel Gemini Lake single CPU |
|
|
CPU package |
BGA |
|
|
Chipset |
Intel Gemini Lake serial SOC |
|
|
BIOS |
EFI BIOS |
|
Memory |
Technology framework |
Single channel DDR4 2133Mhz |
|
|
Memory |
MAX Support DDR4 8G |
|
|
Socket |
DDR4 SODIMM 60 Socket |
|
Video |
Graphic controller |
Intel UHD 600 Graphics |
|
|
HDMI |
HDMI（2.0）MAX resolution 4K@60Hz |
|
|
VGA |
VGA MAX resolution 1920x1200 |
|

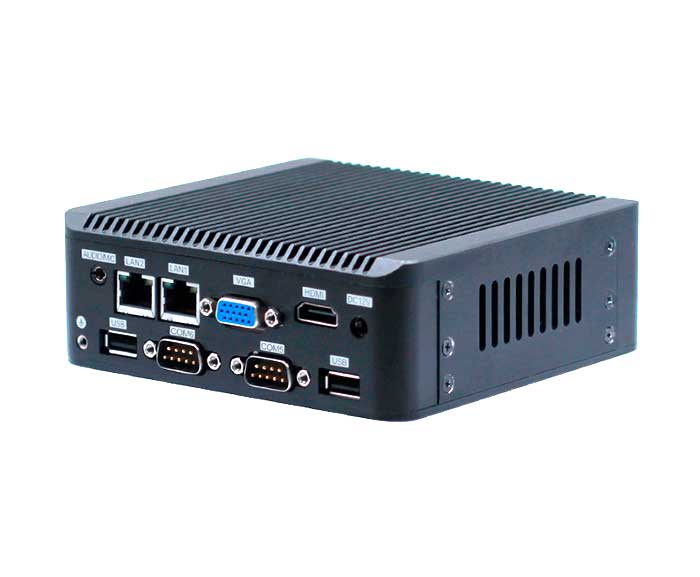

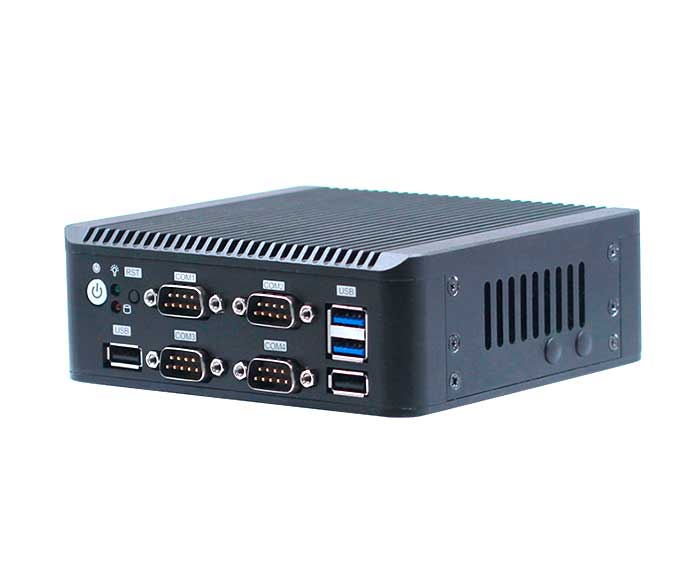

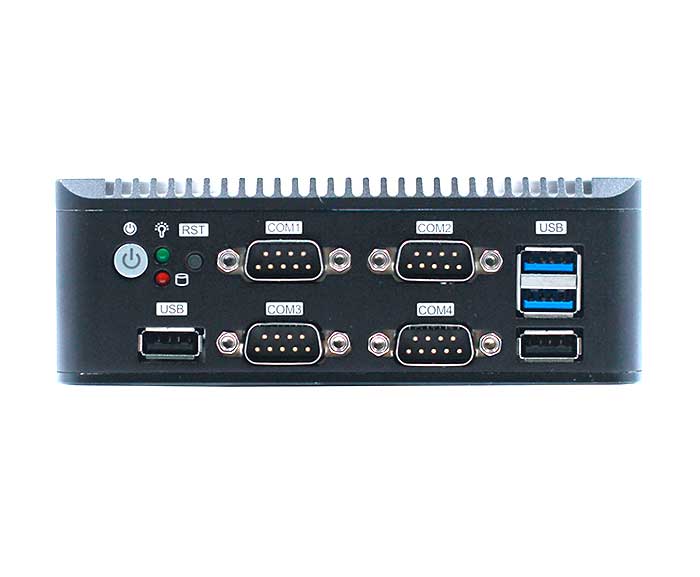

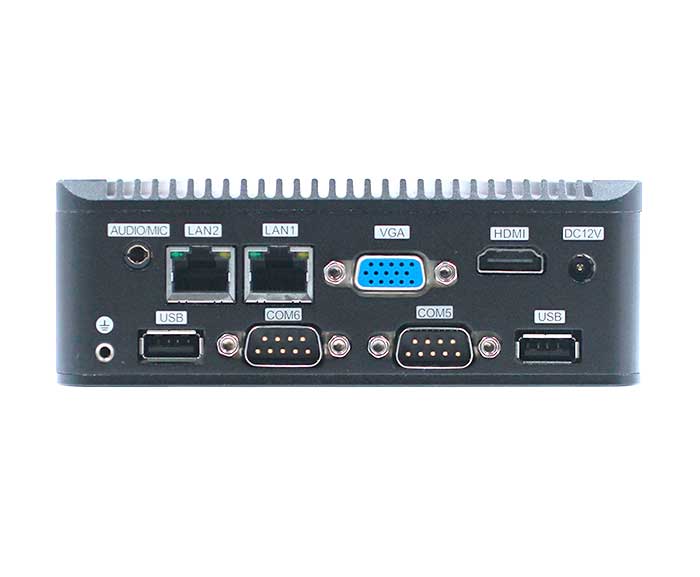

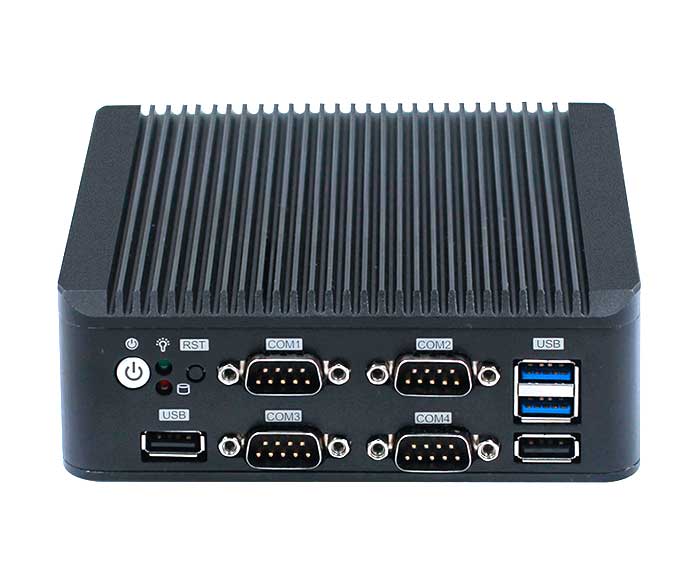

I/O rear panel |
ports |
1*HDMI 2*USB3.0 4*USB2.0 2*LAN 6*COM(COM1,2 can be selected as RS232 or RS485 by jumper and BIOS settings，RS485 supports automatic flow control，COM3,COM4,COM5,COM6 are RS232) 1*Quick boot button with indicator light 1*Reset button 1*DC 1*Power indicator light 1*Hard disk indicator light |
|
Network |
Controller |
2*Intel I211AT or Intel I210High-performance gigabit network card(Optional) |
|
Input/output interface
|
USB |
4*USB2.0 2*USB3.0 Max support +5V/1A |
|
|
Com port |
COM1,2 can be selected as RS232 or RS485 by jumper and BIOS settings，RS485 supports automatic flow control，COM3,COM4,COM5,COM6 are RS232 |
|
Expansion bus |
Mini-PCle |
1 Mini-PCIe socket,support PCIe and USB device（5G module or 4G module optional） |
|
Storage |
SATA |
1 standard SATAIII interface with a maximum transfer rate of 6Gb/s |
|
|
M-SATA |
1*Mini-PCIe M-SATA Scoket,Support SANDISK protocol, maximum transfer rate of 6gb/s |
|
|
EMMC |
Support 32/64/128G(optional） |
|
Power supply |
Power Type |
Single input dc power supply,DC12-19V |
|
Working environment |
Operating temperature |
-20℃ ~ +60℃ |
|
|
Storage temperature |
-40℃ ~ +85℃ |
|
|
Working humidity |
0% ~ 90% relative humidity, no condensation |
|
|
Storage humidity |
0% ~ 90% relative humidity, no condensation |
|
System Support |
|
Windows10 Linux |
|
Physical dimension |
Size |
134*126*46.8 mm |
|
|
Weight |
0.5KG |
|
Certification |
|
CE,ROHS,FCC |
